WISPR Ranger Pro

Category:

(0 reviews)

Description

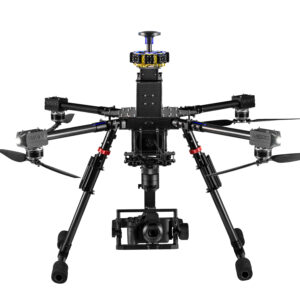

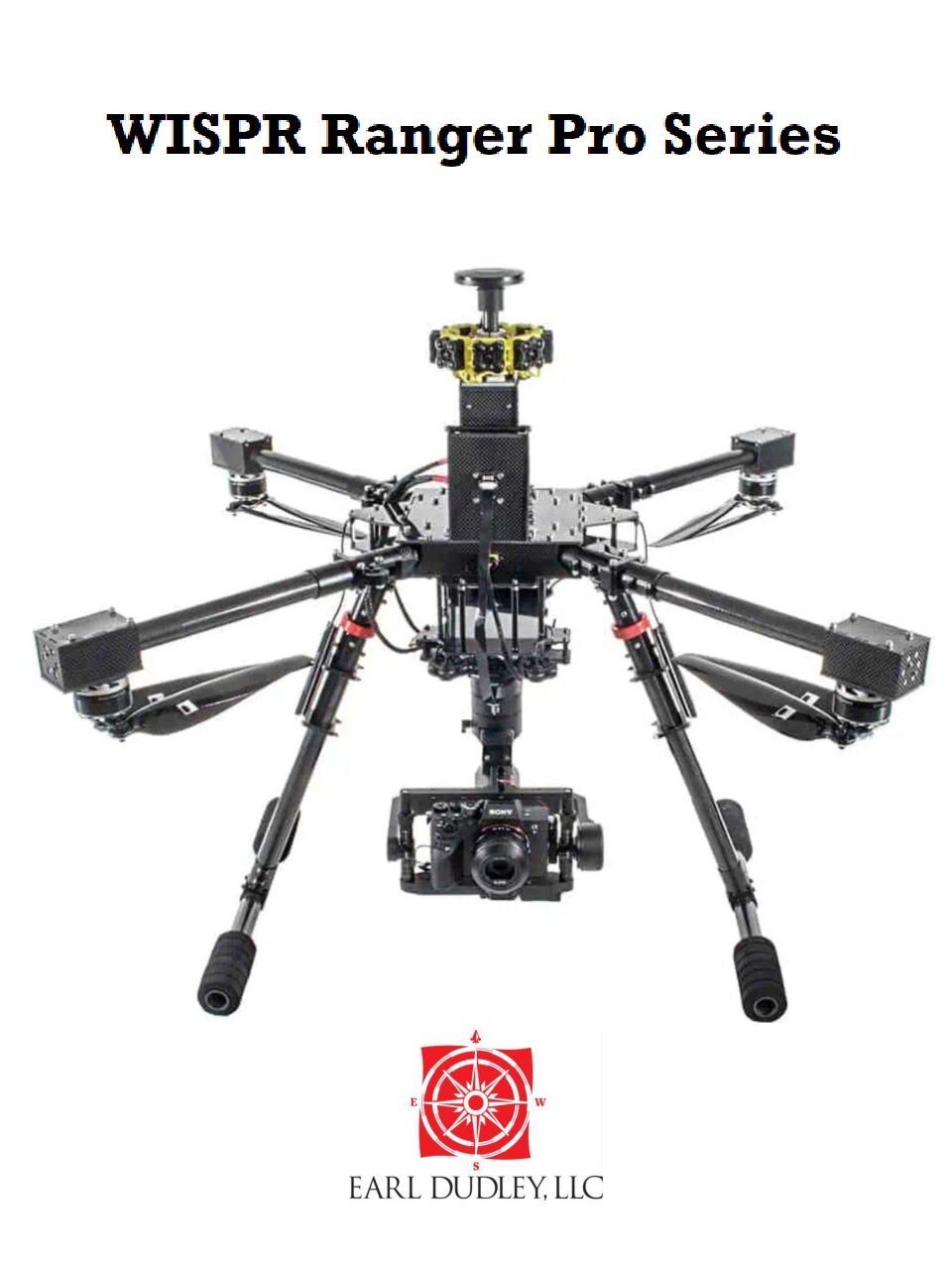

WISPR Ranger Pro
Built with American Ingenuity forged from American brains and built with American brawn
  • Made out of carbon fiber and aluminum and built rugged for work!
  • Incorporated aircraft grade electromagnetic shielding to protect against EMI near power lines.
  • Compact folding design for easy storage!

Propulsion System

  • Max payload of 6 lbs. and in winds of 50MPH+
  • Built in cooling system maintains optimum temperature for the speed controller/electronics
  • Flight time of 18-45 minutes depending on the payload

Position Stability

The WISPR Ranger Pro is equipped with a Glbal Navigation Satellite System (GNSS) receiver compatible with Real Time Kinetics (RTK) GNSS systems. It Utilizes a LIDAR range finder for altitude accuracy and vertical stability while flying. To ensure the drone has redundancy in the critical sensors needed for flight. WISPR integrates 2 magnetometers, 2 accelerometers, 2 gyro, and 2 barometers. Lastly, a battery current and voltage sensor is used for track battery levels. Together these sensors keep the WIPSR Ranger Pro Series safe during flight!

Contact Us
First
Last

Max Payload 6-lb
Max Flight Time 22 minutes with 5-lb
26.5 minutes with 3.3-lb
33 minutes with 0.5-lb
38 minutes with 0-lb
Max. Payload Stability Wind Rating +50mph – Tested
Collision avoidance Omni-directional collision avoidance
RTK? Yes
PPK compatible? Yes
Diagonal Wheelbase 38″ unfolded
19″ folded
Height 15″ without landing gear
28″ with landing gear
Weight with battery 17lb
Max Takeoff weight 23lb
Max Speed 60MPH
Max Operating Temperature 122 degrees F
Minimum Operating Temperature -4 degrees F
Frame type and material? Quad copter made out of carbon fiber and aluminum. Made rugged for work!
Battery Type 1 x 6S 25000 mAh LiHV
Battery Weight 5.7lb
Battery Charger Any type of LiHV 6S battery chargers
Propeller Size 18.5″ x 6.3 folding carbon fiber propellers
24 Volt Power power port? Yes
HDMI I/O capabilities? Yes
Serial I/O? Yes
SBUS I/O? Yes
Flight controller software? WISPR Flight Firmware (Open Source Software)
Ground Control Software? WISPR Ground Control (Open Source Software)
Compatible with zoom cameras? Yes

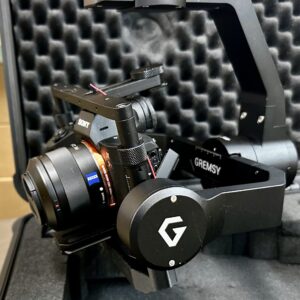

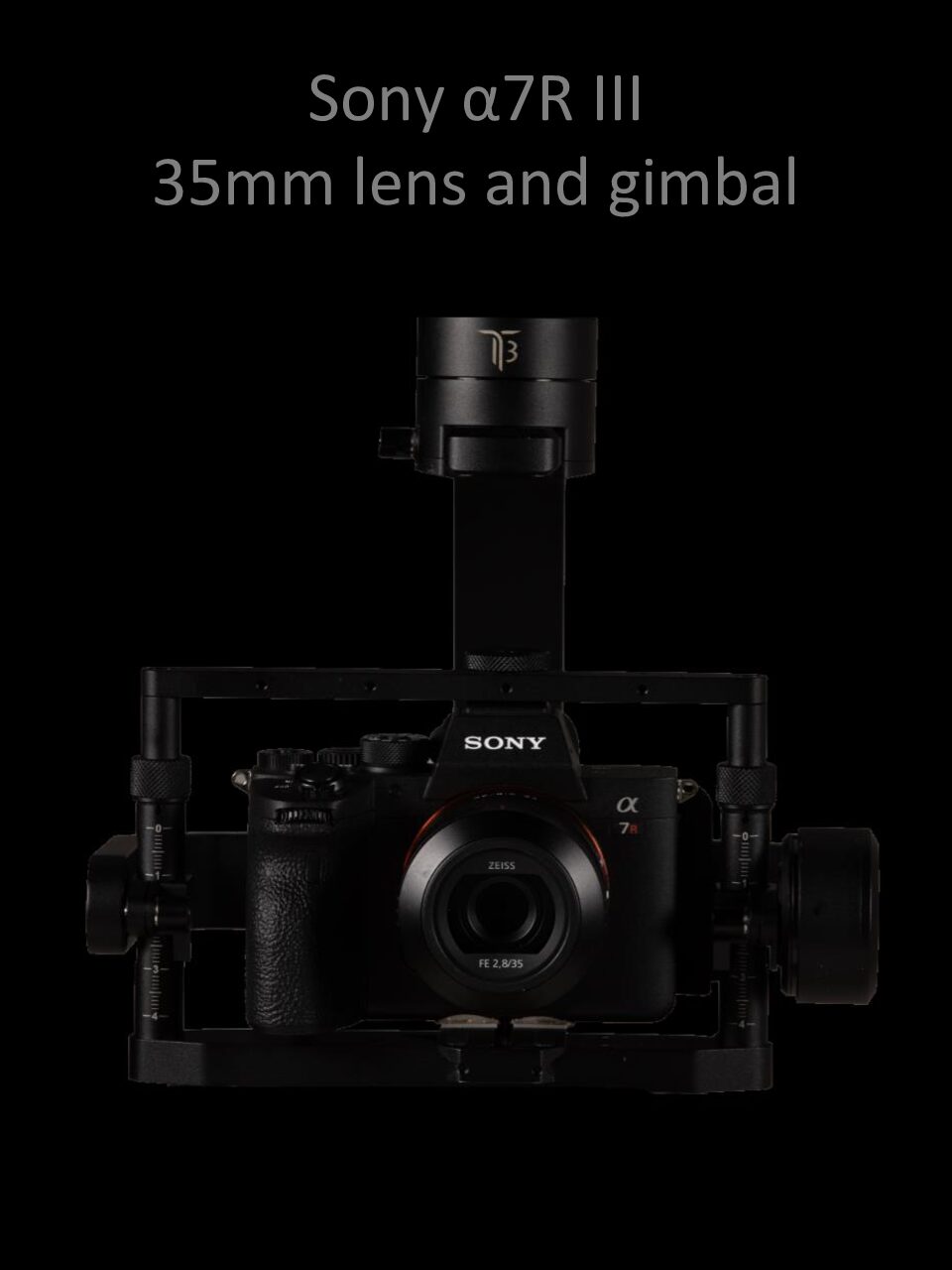

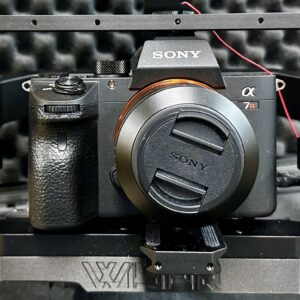

Compatible with mirrorless cameras such as Sony and Cannon cameras? Yes
Compatible with FLIR and Workswell Wiris Pro? Yes
Can you integrate custom gimbals and cameras? Yes
Standard Warranty 1-Year
Hand controller? Black or Blue Herelink Smart Controller
Included in purchase? *Smart Controller
*Case
*Battery
*Dual Battery Fast Charger
*2 – pairs of propellers
*Ranger Pro Carrying Case
Shipping Included? Yes
